Materialize Platform: User Experience

How to read this document

⚠️ WARNING! ⚠️ This document is a work in progress! While the underlying architecture is firm, the particular mapping from architecture to user-facing concepts described in this document is still up for debate.

This document is a proposal for how we expose the architecture of Materialize Platform to users. The intended user experience drives some of the concepts that we'll want to reflect in our code. The intended user experience in turn reflects the practical realities of the tools we have access to.

Terms in this document that represent key user-facing concepts are introduced with italics. The underlying components may use different terminology internally, but any user-facing interfaces should use the term specified in this document. For example, the COMPUTE layer is free to use the term COMPUTE INSTANCE internally, but the user-facing documentation, web UI, and SQL API should all consistently use the term cluster.

Overview

Depicted below are the tangible concepts that Materialize Platform exposes to users.

An account represents a customer of Materialize Platform. An account has users and manages billing.

A region is a specific region of a specific cloud provider (e.g., aws:us-east-1). The region boundary is strong: besides users and billing, nothing is shared between regions in the same account.

A cluster is the user-facing name for a COMPUTE INSTANCE. A region can contain any number of clusters. A cluster may be replicated for fault tolerance; each redundant copy is called a cluster replica.

A region contains a standard SQL catalog, which contains databases, which each contain schemas, which each contain database objects. A database object is one of the following:

a source, which imports data into the region;
a sink, which exports data out of the region;
a table, which stores data directly in the region;
a view, which describes a transformation of sources, tables, and other views;
an index, which schedules the persistent computation of a source or view in a cluster;
a secret, which securely stores credentials for external systems.

Note that sources, tables, views, and secrets are shared across all clusters in the region, while indexes are only shared within a cluster.

A timeline represents a collection of sources (and views derived from those sources) that are in the same time domain. Timelines live somewhere within a region, but we are not yet sure where.

A user's access to a region is regulated by roles. A role is unique to a region and defines what users are allowed to assume the role and which database objects are readable and writable.

Each region contains a single STORAGE INSTANCE. Users are not directly aware of this storage instance, but any persistent state in the region (e.g., table data) is managed by the regions's storage instance.

These concepts are described in more detail in the User-facing concepts section below.

User interfaces

Web UI

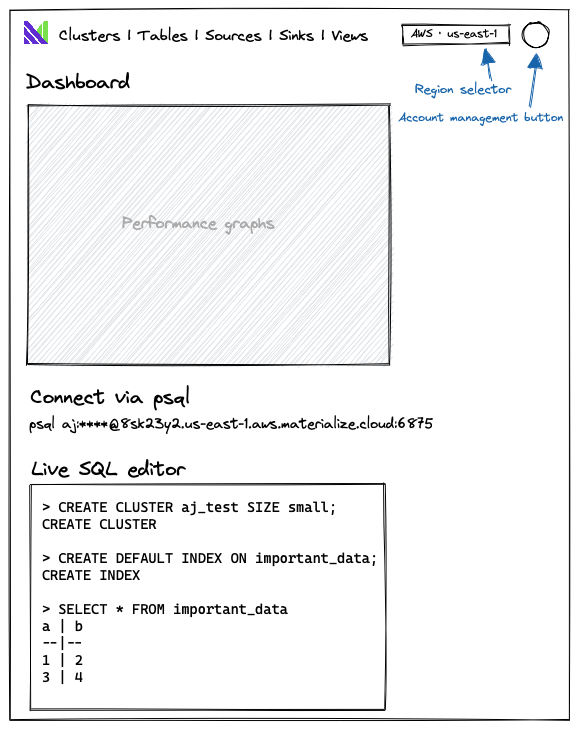

We will evolve the existing Materialize web UI (https://console.materialize.com) to reflect the new hierarchy of concepts. The following wireframe is a very rough sketch of what the Materialize Platform UI could look like:

The key differences are:

The only state that is global to the account is accessed via the account management button. All other state is scoped to the region selected in the region selector.
The concept of a "deployment" has disappeared. The objects attached to a deployment have moved to various other parts of the hierarchy. For example, there is a single SQL endpoint for the entire region, rather than a SQL endpoint for each deployment.

The web UI is the only visual interface, and it is therefore particularly suited for:

User onboarding. The web UI can easily guide new users through creating their first source and view.
Ongoing user education. The web UI can gently advertise new source types and new features.
Performance monitoring and debugging. The web UI can display graphs and other visualizations to help users diagnose problems with their Materialize Cloud account. For example, the memory usage visualization could be polished and integrated directly into the web UI.

While manual management of clusters, tables, sources, sinks, and views will be possible via the web UI, we should push larger organizations to use dbt instead, so that their code can be captured in Git.

`mzcloud` CLI

We will evolve the existing mzcloud command-line interface into a seamless SQL shell for power users.

The new tool will be a simple wrapper over psql that automatically handles authentication. Here is a rough sketch of the interface:

$ mzcloud login aj@foocorp.com
Opening https://console.materialize.com/login/SFB33-47281 in your browser...
$ mzcloud connect aws:us-east-1
psql (14.1)
Type "help" for help.

aj@foocorp.com=# CREATE CLUSTER aj_test ...

The mzcloud login command authenticates with Materialize Cloud via the user's browser, then stores the resulting authentication token for use by mzcloud connect.

The mzcloud connect command discovers the regional SQL endpoint for the specified region and drops the user into a psql session connected to that endpoint.

The mzcloud secret command reads from stdin and installs the value as a secret. This can be more convenient than copy/pasting the secret value into a CREATE SECRET statement, and avoids leaving a copy of the secret in ~/.psql_history.

$ mzcloud secret db.schema.sekret < /foo/bar
# Runs `CREATE SECRET` under the hood.

As with the web UI, while manual management of clusters, tables, sources, sinks, and views will be possible via the SQL shell, we should push larger organizations to use dbt instead, so that their code can be captured in Git.

dbt

Materialize Platform will interoperate seamlessly with our existing dbt-materialize adapter for dbt.

dbt allows users to capture their source, view, and sink definitions in Git, and handles the deployment of updates to those definitions when they change. Version control for database schemas becomes increasingly important as an organization scales, as allowing large numbers of users to manually edit source and view definitions can quickly lead to chaos.

dbt may also be a key part of our story for handling schema upgrades. Imagine that you want to change the definition of a set of materialized views without any downtime. A sufficiently intelligent materialize-dbt adapter could create the new views in a new cluster, wait for them to come up to date with the old views, then atomically swap the clusters.

Materialize Platform will also offer one-click integration with dbt cloud.

Terraform

dbt is essentially Terraform for databases. By supporting dbt, we eliminate much of the need for Terraform.

However, while dbt has excellent support for managing views and indexes, and good support for managing sources and sinks, it is not the ideal tool for managing clusters, roles, databases, schemas, or secrets. So we might want to build a Terraform provider to manage these resources types.

APIs

Admin API

The admin API is a REST API hosted at https://admin.cloud.materialize.com. It is provided by Frontegg, our user management provider, and handles authentication and configuration of account security policies.

The Frontegg API reference specifies this API.

The primary operation that this API provides is the exchange of user credentials for a short-lived authentication token. User credentials may be a username and password or an API key.

We don't plan to publicize or document this API, but we don't plan to hide it, either.

Global API

The global API is a REST API hosted at https://api.cloud.materialize.com. It handles operations that apply globally to an account rather than to a single region within an account.

To authenticate with the global API, users supply an authentication token obtained from the admin API.

We will make the following changes to the existing API specification:

Deprecate all operations on the deployments resource.
Deprecate all operations on the mz-versions resource.
Add a new API to enable a cloud-provider region for an account:

PUT /api/region/{cloud-provider}/{region}

In the future, we will add billing operations to this API.

As with the admin API, we don't plan to publicize or document the global API, but we don't plan to hide it, either.

Region API

The user-facing API for Materialize Platform is the region API. This is the only API that we will actively advertise to users. The intent is that users think of the region API as the Materialize Platform API.

The region API is a SQL API. It is not a REST API. While the API will be accessible via HTTPS, HTTPS is merely a container for a SQL payload. This is likely to be a contentious topic. Please see Why SQL? for justification.

This implies that the web UI will communicate with the region API by using the SQL-over-HTTPS API.

Endpoint

The endpoint for the region API is a hostname of the following form:

CUSTOMER-ID.REGION.CLOUD-PROVIDER.materialize.cloud

For example:

x32sk13nf.us-east-1.aws.materialize.cloud

This endpoint requires TLS encryption. The server will present a TLS certificate issued by a trusted root CA.

PostgreSQL server

A PostgreSQL protocol server will be accessible at port 6875. The server processes SQL as described in PostgreSQL Frontend/Backend Protocol.

The PostgreSQL server will support only username/password authentication. The username must be the email address of a user in the account. The password must be a valid app-specific password for the user. This is notably not the password that the user would supply to log into the web UI, as that password is configured to additionally require two-factor authentication and CAPTCHA completion.

The existing Materialize Cloud support for client TLS authentication will be removed, with no plans for restoration.

We do not currently expect to need to make any changes to the existing PostgreSQL protocol server in materialized.

HTTPS

An HTTPS server will be accessible at port 443.

To authenticate with the HTTPS server, users supply an authentication token obtained from the admin API.

The HTTPS server exposes two APIs:

POST /api/sql executes a batch of SQL statements.

Input format

This API accepts two forms of input.

Simple

The request body is a JSON object containing a key, sql, which specifies the SQL string to execute.
- Requests may contain multiple SQL statements separated by semicolons.
- Statements are processed as if they were supplied via the Simple Query flow of the PostgreSQL protocol.
- Statements do not support parameters
```
{
"query": "select * from a; select * from b;"
}
```
Extended

The request body is a JSON object containing a key queries, whose value is array of objects, whose structure is:

Key Value

query specifying a single SQL string to execute

params an optional array of text values to be used as the parameters to query.
- Each query must contain exactly 1 statement.
- Statements are processed as if they were supplied via the Extended Query flow of the PostgreSQL protocol.
- Statements support parameters. Note that all parameter values' elements must be text or null; the API will not accept JSON numbers.
```
{
"queries": [
{ "query": "select * from a;" },
{ "query": "select a + $1 from a;", "params": ["100"] }
{ "query": "select a + $1 from a;", "params": [null] }
]
}
```
Output format

The output format is a JSON object with one key, results, whose values is an array of serialized environmentd::http::SimpleResult representing all of the executed statements. Notably, this includes the results of statements whose results are ultimately rollback because of an error in a later part of the transaction. Users must parse the results to understand which statements ultimately reflect the resultant state.

The serialized environmentd::http::SimpleResult values are represented in JSON as:

SimpleResult value JSON value

Rows {"rows": <2D array of JSON-ified results>, "col_names": <array of text>}

Error {"error": <Error string from execution>}

Ok { "ok": <tag>}

Each committed statement returns exactly one of these values; e.g. in the case of "complex responses", such as INSERT INTO...RETURNING, the presence of Rows implies Ok. In the future we can consider including the tagged Ok.

Misc.

In the future, we may expand the feature set of the HTTPS API to allow additional control over query execution and result fetching, a la the Snowflake SQL REST API.
ws://<ENDPOINT>/query?query=QUERY streams the result of a single query over the WebSockets protocol.

This API is particularly useful for listening to the results of SUBSCRIBE queries from a browser.

In the future, we can consider adding parameter parsing for these queries.

Output

A Websocket request outputs the following:
- {"ok": <tag>} once the command has completed successfully.
- {"error": <Error string from execution>} if the command has errored.
- {"col_names": <array of text>} if the command returns columns of data, providing the returned columns' names.
- {"rows": <2D array of JSON-ified results>} representing returned columns of data
For example, an INSERT...RETURNING would return something akin to:
```
{ "col_names": ["x"]}
{ "rows": [[1]]}
{ "ok": "INSERT 0 1"}
```
In the case of SUBSCRIBE, users may expect many instances of "rows" after the initial {"col_names"...}.

Ordering

Clients can derive a finite-state machine to handle returned values:
1. "col_names" if there will be columns of data returned.
  1. 0 or more "rows". In the case of e.g. SUBSCRIBE, there may be many such values returned.
2. "ok" or "error" indicating that the statement is done processing. Note that:
  - "col_names" never precedes "error".
  - Statements such as SUBSCRIBE are capable of non-termination, so may never issue an "ok".

Key	Value
`query`	specifying a single SQL string to execute
`params`	an optional array of text values to be used as the parameters to `query`.

`SimpleResult` value	JSON value
`Rows`	`{"rows": <2D array of JSON-ified results>, "col_names": <array of text>}`
`Error`	`{"error": <Error string from execution>}`
`Ok`	`{ "ok": <tag>}`

SQL dialect

The supported SQL dialect will be identical to the dialect of materialized today, with the following changes:

The addition of commands to create, drop, and inspect clusters.
The addition of a cluster session variable that specifies the active cluster.
The modification of CREATE MATERIALIZED SOURCE, CREATE MATERIALIZED VIEW, CREATE INDEX, and CREATE SINK to associate the created index with the active cluster.
The addition of commands to create, drop, and inspect secrets.

These changes are described in more detail in the Cluster, Index, and Secret sections below.

Future evolution

In the future, we might want support queries in additional languages (e.g., Datalog) in the region API. Any such languages would initially be supported only as an unstable API.

We might also want to expose more direct access to the STORAGE and COMPUTE layers. It is too early to know whether this access will be provided via additions to the SQL dialect (e.g., CREATE VIEW AS UNSTABLE COMPUTE PLAN '...') or via a new API protocol.

User-facing concepts

Account

An account contains the resources of a single customer of Materialize Platform. We do not intend to be prescriptive about what a "customer" is. For example, a customer may be an individual, an entire organization, or a single team at an organization.

An account provides centralized billing for all contained regions. This is likely to be the determining factor when evaluating whether to create one account per team or a single account for the entire organization. If an organization wants consolidated billing across all of their teams, they should register for a single account and use role-based access control to create permission boundaries between teams as necessary.

An account has an attached security policy, which allows customers to configure the following:

Integration with a single-sign on (SSO) provider
Enforcement of two-factor authentication (2FA)

An account should not have API tokens that are associated directly with the account. All API access should be associated with a user within the account. The existing "Workspace API tokens" feature in Frontegg should be disabled.

User

A user is an entity that accesses Materialize Cloud. That entity may be an actual human, or a service account for a machine.

A user is uniquely identified by an email address. A user can never change her email address. To effectively change her email address, she must create a new account with a new email address and delete the old account. This limitation is not desirable but a result of a design decision in our authentication provider. The upside is that it is safe to use an email address as a stable and unique identifier throughout the product. (TODO: verify with Frontegg.)

A user has one password and any number of personal API tokens. A personal API token consists of a UUID client ID and a UUID secret.

There are two special account-level roles that a user can belong to: "account owner" and "account member." Account owners have access to the global API (i.e., access to billing and enabling new regions) and the ability to invite new users to the account, while account members do not. The first user in an account is always an account owner. Account owners are effectively superusers of the region API, and are not subject to any per-region roles when accessing the region API.

App-specific password

An app-specific password is an alternate encoding of a personal API token for authenticating with the PostgreSQL protocol. Users should create an app-specific password for each external service that will connect to Materialize Platform via the PostgreSQL protocol.

Rationale: the PostgreSQL protocol does not have separate fields for an API client ID and API secret key, so both values need to be packed into the password field. Naively packing the UUIDs is unwieldy, however:

893677c2-a74c-4ecb-804d-3b7fa0c61fdc:68104da2-3417-442e-a614-f078dac470be

But since UUIDs are just 16 bytes each, we can pack them into a much shorter base64-encoded string:

>>> base64.urlsafe_b64encode(client_id.bytes + secret_key.bytes).decode().rstrip('=')
iTZ3wqdMTsuATTt_oMYf3GgQTaI0F0QuphTweNrEcL4

When encoded in this form, we call the value an app-specific password rather than an API key.

In the web UI, we will need to build a custom interface for managing personal API tokens that shows the app-specific password form alongside the client ID and secret.

Billing

Materialize Platform will bill monthly based on usage. Accounts will be billed in terms of compute units, storage units, and network transfer units. A strawman proposal: compute units are virtual machine-hours, storage units are gigabyte-months, and network transfer units are gigabytes. Only outbound network traffic is billed.

We expect metering the compute usage of clusters, the storage usage of sources and tables, and outbound network traffic generated by sinks and query responses, to be straightforward.

What is not clear is how to bill for the overhead of other system components, like the compute usage of source ingestion. One candidate proposal is to additionally bill per gigabyte ingested to cover the compute cost of the ingestion.

Region

When an account is created, it does not have any regions. The user's first step after registering for a new account is to choose one region to activate.

Additional regions can be enabled via a "+ Enable new region" button in the region selector or somesuch in the web UI, or via the global API.

To prevent disaster, regions cannot be deactivated. Users who wish to deactivate a region can contact support.

The initially supported regions will be the same regions as supported today by Materialize Cloud:

aws:us-east-1
aws:eu-west-1
aws:us-west-2

Cluster

Clusters are created within a region via a new CREATE CLUSTER SQL statement:

CREATE CLUSTER <name>
    [REPLICA <replica> SIZE {xs|s|m|l|xl} ...]

A cluster consists of any number of replicas. The initial replica set can be specified inline in the CREATE CLUSTER statement for convenience. After cluster creation, the replica set can be managed via the CREATE CLUSTER REPLICA and DROP CLUSTER REPLICA commands described in the next section.

In the (far) future, we plan to build "autoscaling", in which replicas are automatically managed. Users would specify a desired replication factor and a minimum and maximum size for their replicas, and Materialize Platform would automatically shrink or grow the cluster's replicas within those limits in response to observed resource utilization.

The list of clusters can be observed via the new SHOW CLUSTERS statement or the new mz_clusters system catalog table.

Any requests to the cluster will be transparently routed to any live replica, so the cluster can tolerate failures of n - 1 replicas before it becomes unavailable.

It is possible to create indexes in a cluster before it is provisioned, but attempts to SELECT from these indexes will block until the cluster is provisioned.

Clusters are dropped via a new DROP CLUSTER SQL statement:

DROP CLUSTER <name> [CASCADE];

Clusters cannot be dropped while they contain any indexes unless CASCADE is specified.

The active cluster for a session is configured via a new cluster session variable:

SET cluster = <name>;

Users can configure a default cluster for their sessions. How this default is configured is TODO.

Access to a cluster is gated by SQL permission grants. Users cannot execute queries on a cluster on which they do not have USAGE privileges. Users cannot create clusters if they do not have the CREATE CLUSTER privilege in the region.

Cluster replica

A cluster replica is created via a new CREATE CLUSTER REPLICA SQL statement:

CREATE CLUSTER REPLICA <name>
    FOR <cluster>
    SIZE {xs|s|m|l|xl},
    AVAILABILITY ZONE '<az>'

Creating a replica allocates persistent compute resources (e.g., EC2 instances) and begins billing the account for those resources. The SQL statement returns successfully as soon as the request is received.

A replica may be horizontally scaled across multiple machines. The scaling is deliberately hidden from users behind the opaque notion of "size".

All machines in a replica run in the specified availability zone (AZ). For fault tolerance, users should distribute a cluster's replicas across AZs as evenly as possible to ensure availability in the event of an AZ outage.

The list of clusters and the status of each can be observed via the new SHOW CLUSTER REPLICAS statement or the new mz_cluster_replicas system catalog table. The exact output of these commands is TODO, but they will include the provisioning status of the EC2 instances.

Replicas are dropped via a new DROP CLUSTER REPLICA SQL statement:

DROP CLUSTER REPLICA <name>;

Database

A database is a simple container of schemas that can be subject to access control. It confers no additional semantics.

The only supported privilege is CREATE, which allows users to create schemas in the database.

TODO: should databases be associated with a single timeline?

Schema

A schema is a simple container of database objects that can be subject to access control. It confers no additional semantics.

The only supported privilege is CREATE, which allows users to create objects in the schema.

Databases and schemas are simple namespaces to allow for downstream organizations and tools to develop opinions about how to structure a Materialize Platform project.

For example, an organization might achieve separate production and staging environments by creating a production database and a staging database, then using roles to limit access to production to a trusted set of engineers and service accounts.

Source

The user experience of a source is largely unchanged.

The existing CREATE MATERIALIZED SOURCE statement is extended to support specifying the cluster in which to create the index:

CREATE MATERIALIZED SOURCE <name> FROM ... [IN CLUSTER <cluster>]

If no cluster is explicitly specified, the active cluster is used. If there is no active cluster, the statement is rejected.

Users cannot read data from a source on which they do not have the SELECT privilege.

Note that if the source references a secret, privileges on that secret are not considered when determining whether a user can read the data in the source. In other words, the SELECT privilege on the source grants access to the data protected by the secret, but not to the secret itself.

Users cannot create a source if they do not have the CREATE SOURCE permission in the region.

Sink

Like indexes, sinks cause computation to occur, and therefore must be bound to a cluster.

Users cannot create a sink if they do not have the CREATE SOURCE permission in the region.

We do not yet know how to provide sinks in Materialize Platform. We are, however, aware of at least two important user experience constraints:

The default sink experience must be "exactly once." If a cluster restarts, downstream sinks must not reexport data that was previously exported.
Sinks must be prepared for the behavior of the COMPUTE layer to change after a version upgrade. If we fix a bug in COMPUTE that changes the data computed by an index, sinks must detect and communicate this behavior change to users. Options include marking the sink as errored and asking users to recreate the sink, or emitting the diff between the old computation and new computation and then proceeding with export of new values.

Table

Unlike tables in materialized, tables in Materialize Platform will durably store their data. They will no longer have a mandatory primary index; users can leave their tables as unindexed storage collections, if they so choose.

Users cannot read data from a table on which they do not have the SELECT privilege.

View

The user experience of a view is largely unchanged.

The existing CREATE MATERIALIZED VIEW statement is extended to support specifying the cluster in which to create the index:

CREATE MATERIALIZED VIEW <name> FROM ... [IN CLUSTER <cluster>]

If no cluster is explicitly specified, the active cluster is used. If there is no active cluster, the CREATE VIEW statement is rejected.

Users cannot read data from a view on which they do not have the SELECT privilege. Note that if the view references sources or other views, privileges on those sources and other views are not considered when determining whether a user has access to the view.

Index

The existing CREATE INDEX statement is extended to support specifying the cluster in which to create the index:

CREATE INDEX <name> ON <object> (<col>, ...) [IN CLUSTER <cluster>]

If no cluster is explicitly specified, the active cluster is used. If there is no active cluster, the CREATE INDEX statement is rejected.

SHOW INDEXES and mz_indexes will gain an additional column specifying to which cluster the index belongs.

There are no access control restrictions on individual indexes. Access to indexes is controlled by the permissions on the cluster containing the index.

Secret

A secret is a new type of database object that securely stores a confidential credential.

To create a new secret:

CREATE SECRET <name> AS '<secret>';

To drop an existing secret:

DROP SECRET <name>;

To update an existing secret:

ALTER SECRET <name> AS '<secret>';

The existence of the secret will be stored in the catalog, but the actual contents of the secret will be securely stored in a secrets management system.

Sources and sinks will need to learn to accept secret references in places that they currently expect an inline string or file path. Designing that new syntax is TODO.

In some cases, secrets may need to be updated atomically, e.g., when updating both the private and public halves of a TLS certificate. To accomplish this, users can issue any number of CREATE SECRET, DROP SECRET, and ALTER SECRET statements inside a SQL transaction.

Referencing a secret in a source or sink definition requires that the user who creates the source or sink has USAGE privilege on the secret.

There is intentionally no command to view a secret, though a sufficiently motivated attacker with the USAGE privilege could likely extract a secret with a well-constructed CREATE SOURCE command that references the secret.

Timeline

TODO: this section is still relatively poorly understood. Are timelines 1:1 with databases, or their own separate entity?

TODO: engage @mjibson.

TODO: add timelines to the overview diagram.

UX thoughts from @frankmcsherry on timelines:

Within each REGION there may be multiple TIMELINEs, which correspond roughly to coordinator timelines. A TIMELINE contains collections, and is the unit within which it is possible to query across multiple collections.

The main restrictions we plan to impose on users is that their access to data is always associated with a REGION, CLUSTER, and TIMELINE, and attempts to access data across these may result in poorer performance, or explicit query rejection.

Role

A role assigns a set of privileges to a group of users. Roles are scoped to a single region.

Privileges can be granted on databases, schemas, and most database objects. There are also some special region-scoped privileges that control who can create certain types of objects, like CREATE CLUSTER and CREATE SOURCE. Details about what objects support what privileges are described in the sections above.

The standard SQL CREATE ROLE statement will be used to map users to groups, and the standard SQL GRANT and REVOKE statements will be used to assign and unassign permissions to users and groups.

Assorted considerations

Version upgrades

Services running outside the context of a customer's region (e.g., the web UI and the global API) will be continuously deployed.

Services running inside the context of a region will be upgraded to the latest version of Materialize Platform every week. Users will not be permitted to choose when upgrades happen, nor will they be permitted to opt out of upgrades. We reserve the right to change the upgrade frequency as it suits us.

Initially, version upgrades require downtime and so will be scheduled during a maintenance window. Our goal is to provide zero downtime upgrades, at which point we will no longer need maintenance windows. At that point we may also choose to entirely hide the details of the upgrade schedule from our customers.

For a discussion of this policy, see upgrade cadence below.

Observability

We have two separate challenges ahead of us: internal observability and external observability.

Internal observability is about providing our customer support engineers and production engineers with the ability to diagnose problems in our infrastructure. Materialize Platform will be more difficult to observe than materialized today, because distributed systems are more challenging to monitor than single-node systems. The root cause of an issue may be a machine running a different service, and tracing causal chains across machines and service boundaries is vastly more difficult than tracing function calls through a single process. Work items revolve around building distributed tracing and monitoring infrastructure using technologies like the tracing crate, Prometheus, and OpenTelemetry. This work has already started.

TODO: engage @guswynn and @antifuchs to think further about internal observability.

External observability is about providing our customers with insight into the performance of their Materialize Platform account. We can't provide our customers with our distributed tracing infrastructure, as that will leak private details of our infrastructure and is a poor user experience to boot. Instead, we'll want to provide structured access to curated diagnostic information via the system catalog. Snowflake's QUERY_HISTORY view is a good example of this approach.

A key implication is that there will be no log file in Materialize Platform. What processes' logs would we even display? Details about what processes are running will be hidden from users. Any log messages in materialized today that are meant for end-users will need to instead make their messages available via tables or sources in the system catalog.

Correctness

Materialize maintains four correctness guarantees.

Transactions in Materialize are strictly serializable with respect to the client initiated operations that occur inside of Materialize. Operations include: SELECT, INSERT, UPDATE, and DELETE statements (but not TAIL).
Materialize respects the explicit or implied event order of its sources. This includes partial orders. In practice this means Materialize assigns new timestamps to events in sources. This assignment of new timestamps is called reclocking. Once reclocking occurs, it defines a permanent order of events within Materialize. For sources without transactional semantics (basic Kafka streams), Materialize reclocks the events to reflect the order in which the source emits each event. For sources that do have transactional semantics (Postgres, Debezium) Materialize reclocks events to respect the transactional boundaries. For partially ordered events x and y:
1. if x < y in the source, then x ≤ y in Materialize
2. if x = y in the source, then x = y in Materialize
Materialize provides real time recency guarantees. This means any write committed by an upstream source is reflected in future queries against Materialize. Guaranteeing real time recency means that Materialize must block on a query until it has complete certainty about the events. Blocking may not be desirable in practice, so Materialize makes the behavior optional. Non-blocking behavior comes with no guarantees of recency.
Materialize provides durability guarantees with respect to acknowledgements of upstream sources. This means that any data from an upstream source that Materialize sends an acknowledgement for (e.g., the commit of an offset by a Kafka source, the acknowledgement of an LSN by a PostgresSQL source, etcetera), will be saved in durable storage.

Discussion

What follows are my (@benesch's) thoughts on the design tradeoffs that were evaluated in the above proposal.

Why are regions siloed?

The ideal user experience would do away with the region silo. Let clusters access sources from any region. Let clusters span regions and failover between regions.

But sharing infrastructure across regions causes high latency, high network transfer fees, and introduces hard distributed systems problems. We don't have a good handle on how to solve those problems. Colocating the important infrastructure in a single region eliminates all these problems.

Put another way: we are not confident we can deliver a cross-region Materialize Platform, but we are confident we can deliver a single-region Materialize Platform.

Why clusters?

The ideal user experience would not involve clusters. Users would show up with a set of queries, and Materialize Platform would automatically schedule those queries in clusters.

This is absolutely the long-term vision for Materialize Platform, but we don't yet know how to make it happen.

The problem is somewhat analogous to automatic building of indexes in traditional databases. The ideal user experience would not involve picking which indexes to build; it would all be handled by the database system automatically. Much research has gone into this problem, and yet in practice developers and DBAs still manually create indexes based on the observed performance of the system.

Why are sources, views, et al. shared between clusters?

The general principle is that everything that can be shared is shared, to allow users maximum flexibility where there are no technical blockers. Users can then apply access control restrictions via RBAC to opt-out of sharing when required.

Upgrade cadence

A common request from customers is the ability to control when upgrades happen or to opt out of upgrades entirely. Honoring these requests is not in our best interests. Weekly upgrades are critical for our engineering velocity:

Having only two supported versions massively reduces the state space of the software running in production, which reduces bugs. The CLOUD OPERATOR doesn't need to handle subtly different behavior in the dozens of deployed Materialize Platform; it can limit itself to the most recent two versions.
Migrating through breaking changes requires only two weeks.

Suppose we want to migrate our on-disk metadata format. In week one, we release a version that is capable of reading the old format but rewrites all data in the new format. In week two, we release a version that can only read the new format, and delete the code that reads the old format. The tech debt (reading the old format) only lives for two weeks.

If we were to instead allow customers to stay on an old version for 6-12 months, we'd be stuck maintaining the code that reads the old format for another 12-24 months!

So what do we tell customers? We build trust by making the version upgrade process absolutely seamless. We write such extensive tests that we are confident that our release process will rarely cause bugs. Snowflake releases weekly, so we know this model can be made to work.

If absolutely necessary, we could consider allowing flagged canary accounts 24 hours of early access for new releases, like Snowflake offers for enterprise customers.

Environments vs regions

Materialize Cloud internally calls regions "environments" and allows multiple environments in the same account bound to the same cloud provider region, differentiated by a user-provided name. I originally intended to make this document match the code, and started by replacing all use of "region" in this doc with "environment". In doing so I discovered that replacement made the user-facing concept substantially less clear, even though it has made the code substantially more clear. A "region" is a concept that is immediately understood by a user, whereas an "environment" requires explanation. So I think "region" is the term we should use in all user-facing material.

Additionally, I think we should initially constrain users to a single environment per cloud-provider region, for the simple reason that it is easier to explain. Between databases and schemas, we already have several user-definable layers in the hierarchy, and I think adding another will cause confusion. RBAC with databases, schemas, and clusters meet the original design goal for environments, which was to allow customers to silo their staging and production infrastructure if they so desired.

If we do discover compelling use cases for allowing multiple environments bound to the same region, it's easy to allow that later, whereas the reverse would be a painful breaking change.

Why SQL?

The idea of the region API allowing only SQL queries has been met with some skepticism. Here are the arguments:

There is only one stable API. We don't need to worry about a separate HTTP API for the web UI that needs its own versioning and backwards compatibility guarantees. We just keep the SQL language stable and the system catalog stable, which we already have to do to avoid breaking our customers. The web UI then gets to piggyback on this stability for free.
Unified access control. The same SQL access control rules that regulate what actions a user can take from a SQL shell regulate what actions they can take from the web UI.
We get extremely valuable experience using Materialize to power a web UI, which is exactly the use case we're selling.

The APIs we develop to support our own web UI, like subscribing to cluster provisioning updates over WebSockets, are APIs that will also be useful to our customers.

I'd like to better understand the arguments against this approach. Here is what I recall:

SQL won't integrate well with monitoring tools.

Counterpoint: we're going to need to get good at monitoring SQL queries in order to support our customers.
SQL won't integrate well with TypeScript.

Counterpoint: Nikhil will personally guarantee that we can generate TypeScript bindings for the SQL API.

SQL access control

The approach of integrating Materialize's custom object types into the SQL access control system is modeled after Snowflake's Access Control Privileges.

I like this approach for several reasons:

We don't need to invent a new access control model.
We'll likely need to build support for GRANT and REVOKE for PostgreSQL compatibility no matter what. If we invented a new access control model, we'd have to figure out how to integrate it with GRANT and REVOKE.
Snowflake has also extended the SQL standard with Snowflake-specific objects. The fact that they've managed to integrate those objects with the SQL permission model is proof that this can be made to work.

My biggest gripe with SQL access control is object ownership. The concept of a single user owning an object has never seemed particularly useful to me, and can be actively frustrating when trying to drop or rename an object. We need to evaluate whether we want to support this.

TODO: engage @andrioni.

Frontegg

There are a few rough edges around the user experience of authentication that are a result of using Frontegg as our authentication provider. In particular, app-specific passwords and the separation between account-level roles and region-level roles are quite confusing, and the inability to change a user's email address is an annoying limitation.

I don't see a better alternative than what's proposed if we want to keep Frontegg as our authentication provider, though. Should we be considering rebuilding Frontegg in house via a SQL interface? (Think CREATE USER.) This was Snowflake's approach.

ux.md 45 KB Permalink History Raw
