Platform v2: Distributed/External Timestamp Oracle

Context

As part of the platform v2 work (specifically use-case isolation) we want to develop a scalable and isolated serving layer that is made up of multiple processes that interact with distributed primitives at the moments where coordination is required. In order to do that, we need to introduce strict boundaries (APIs) between the different responsibilities of the Coordinator and Adapter, where Adapter are those parts of the current environmentd process that comprise today's serving layer.

The distributed TimestampOracle is one of these distributed primitives/APIs that we want to extricate from the Coordinator.

Creating a distributed timestamp oracle is one of the necessary prerequisites for the full realization of use-case isolation, but it is not sufficient. As we will show below, though, implementing our proposal now can already improve Coordinator/serving performance today (both for throughput and latency) and we want to implement the necessary primitives incrementally and roll them out as early as we can and as it makes sense. This way, we can incrementally provide customer benefit on the path to implementing full use-case isolation.

Goals

• implement a distributed TimestampOracle that is independent of the rest of Coordinator/the Catalog/state stored in Stash, such that it could be interacted with from multiple processes concurrently
• provide the same correctness guarantees as the current timestamp oracle: strict serializable reads/writes when requested
• don't regress in performance (latency and throughput), within reasonable bounds
• (side effect) actually improve performance (latency and throughput) for the types of queries that we care about in the context of use-case isolation

Non-Goals

• the rest of the use-case isolation milestones, including an actually distributed serving layer
• linearization (or strict serializable guarantees) around DDL beyond what we support currently
• getting rid of the (process-)global write lock for tables

Overview

The design doc for transactional consistency describes how the TimestampOracle is used in service of our consistency guarantees and what requirements we have for its behavior. The oracle, as currently implemented, cannot easily be used from multiple processes so we have to implement a replacement for use in the distributed serving layer. Our proposal for this replacement is a distributed TimestampOracle that uses CRDB as the backing store.

Below, we first outline the expected behavior of any TimestampOracle (in the context of Materialize) at a high level, then we describe the current oracle, and finally we propose our distributed oracle. We will also examine the implications of the new oracle for performance (both good and bad), mitigations we have to apply so we don't regress in performance, and how we plan to roll out this change.

[!NOTE] Keep in mind that whenever we write reads below we are talking about linearized reads. For serializable reads we don't need to consult the timestamp oracle.

TimestampOracle state and operations

A timestamp oracle logically has to keep this state (distributed or not):

• read_ts: the timestamp at which to perform reads
• write_ts: the most recent timestamp that has been allocated for a write

And it has to provide these operations:

• allocate_write_ts(): Allocates a new timestamp for writing. This must be strictly greater than all previous timestamps returned from allocate_write_ts() and get_read_ts(). For a real-time oracle, we additionally want to make it so that allocated timestamps closely track wall-clock time, so we pick a timestamp that obeys both requirements.
• peek_write_ts(): Returns the most recently allocated write_ts.
• get_read_ts(): Returns the current read_ts. This must be greater than or equal to all previously applied writes (via apply_write()) and strictly less than all future timestamps returned from allocate_write_ts().
• apply_write(write_ts): Marks a write at write_ts as completed. This has implications for what can be returned from the other operations in the future.

It is important to note that these operations have to be linearized across all interaction with the timestamp oracle, potentially from multiple processes. For the current implementation this is easier, because we only have a single serving-layer process. Although there is some complexity around ensuring that there is actually only one process serving queries. We will see how the proposed distributed TimestampOracle solves this problem below.

The current in-memory/backed-by-stash TimestampOracle

The current TimestampOracle is an in-memory, single-process oracle that relies on the Stash for persisting the read/write timestamp. Stash is used for failure recovery and correctness (read linearization) guarantees:

• the oracle reserves ranges of timestamps by writing a timestamp to Stash
• timestamp operations are "served" out of memory
• periodically, a higher timestamp is written to Stash to reserve more time
• there can only be one "leader" environmentd process, meaning one process that does serving work and interacts with the timestamp oracle
• the Stash is used to fence out other processes, both in case of failure/restart and during upgrades

The upside of this approach is that oracle operations are very fast, essentially "free", because they are served out of memory and modify in-memory state.

The downsides are:

• it's not (easily) possible to extend the approach to multiple processes
• at some point between getting a read timestamp and returning a result, the serving process has to assert that it is still the leader
• asserting leadership incurs a costly Stash transaction, through confirm_leadership()

Those last two points are subtle, but what could happen if we did not do that is:

1. old leader reserves timestamps up until t1
2. a new leader (new environmentd process) starts up
3. it reserves a new range of timestamps up until t2
4. a write happens at a timestamp higher than t1
5. the old leader could accidentally serve a read at a timestamp lower than t1 -> a linearization anomaly

We will see below how doing the costly Stash transaction is amortized, making it viable in practice, and how we have to do a similar thing to make the distributed TimestampOracle viable.

The proposed distributed TimestampOracle backed by CRDB

The core idea of the distributed TimestampOracle is that oracle state for a timeline is stored in a row in CRDB. And all timestamp operations become queries against CRDB. We outsource correctness/linearization to CRDB, which comes with the obvious cost of doing a CRDB query for every timestamp operation. We will see below what optimizations we have to apply to make this approach viable and not regress performance (latency and throughput).

The backing table looks like this:

CREATE TABLE IF NOT EXISTS timestamp_oracle (
    timeline text NOT NULL,
    read_ts bigint NOT NULL,
    write_ts bigint NOT NULL,
    PRIMARY KEY(timeline)
);

And for completeness we also spell out all the oracle operations.

allocate_write_ts(timeline, wall_clock_ts):

UPDATE
    timestamp_oracle SET write_ts = GREATEST(write_ts + 1, $wall_clock_ts)
    WHERE timeline = $timeline
    RETURNING write_ts;

peek_write_ts(timeline):

SELECT write_ts FROM timestamp_oracle
    WHERE timeline = $timeline;

get_read_ts(timeline):

SELECT read_ts FROM timestamp_oracle
    WHERE timeline = $timeline;

apply_write(timeline, write_ts):

UPDATE
    timestamp_oracle SET write_ts = GREATEST(write_ts, $write_ts),
    read_ts = GREATEST(read_ts, write_ts)
    WHERE timeline = $timeline;

[!NOTE] All of these queries go through the 1-phase commit fast path in CRDB: the output for EXPLAIN ANALYZE (VERBOSE) contains auto commit.

An important thing to note here is that timestamp operations are now correct by themselves: we don't need the confirm_leadership() call anymore for preventing linearization anomalies.

Optimizations that are required to make the distributed TimestampOracle viable

As part of query processing, we perform multiple oracle operations per each single query so simply replacing the current in-memory TimestampOracle with the distributed TimestampOracle would not be viable: operations that were previously "free" would now take multiple milliseconds.

The solution for this is that we have to batch oracle operations, both for read and write queries. We will examine below how this is similar to the current code where we perform expensive confirm_leadership() calls, but batch them to amortize cost.

Batching of get_read_ts operations

Currently, the pipeline for read queries (peeks, in internal parlance) looks like this:

1. peek comes in
2. determine read timestamp using get_read_ts()
3. render query graph and send off to compute
4. wait for results from compute
5. when results are ready add them to a pending_peek_results buffer
6. whenever we are not busy and have pending query results: perform confirm_leadership() and send results back to client

The salient points here are that the oracle operations in step #2 are "free", so we are doing one oracle operation per peek, and that the confirm_leadership() operation of step #6 translates to a CRDB transaction, which is expensive. Batching up those pending results and doing a single confirm_leadership() operation is what makes this approach viable.

We have to do a similar optimization for the distributed TimestampOracle but instead of batching up results for confirm_leadership() we need to batch up incoming peeks and determine a timestamp for multiple peeks using one oracle operation. We can do this because the distributed TimestampOracle operations provide linearization in and of themselves and we no longer need the confirm_leadership() operation.

The modified pipeline for peeks will look like this:

1. peek comes in
2. add peek to pending_peeks
3. whenever we are not busy, determine a read timestamp for all pending peeks using get_read_ts()
4. render query graph and send off to compute
5. wait for results from compute
6. when results are ready, immediately send back to client

Looking at a processing trace for a single peek, we see that we are doing roughly the same work but at different moments in the pipeline. Additionally, the oracle get_read_ts() will be ever so slightly faster because it is a simple read query instead of a write transaction as we have to do for confirm_leadership().

Batching of allocate_write_ts operations

Each write query needs at least an allocate_write_ts() and an apply_write() operation. We already have the concept of a group commit for batching multiple incoming write queries together, see the design doc for transactional consistency. This makes it so that we a) need to perform fewer table writes, and b) have to do fewer timestamp operations. With the current in-memory TimestampOracle this is a nice optimization but with the distributed TimestampOracle it becomes necessary because, again, timestamp operations become much more expensive than "free".

We mention this here because the way the coordinator main loop is currently structured we barely batch up any writes, meaning the optimization doesn't work. This becomes more apparent with the distributed TimestampOracle. Before enabling the distributed TimestampOracle we therefore have to make sure that batching of write operations into group commits works as expected.

Optimizations that are enabled by the distributed TimestampOracle

The current in-memory TimestampOracle is not easily shareable (even amongst threads/tasks) and the confirm_leadership() operation has to be performed "on the coordinator main loop". The new durable TimestampOracle will not have these limitations: it can be shared within a process and by multiple processes. This will enable some optimizations, even before we implement more of the use-case isolation milestones.

[!NOTE] Some of these optimizations could be achieved by restructuring/reworking the existing abstractions, but we get them "for free" with the distributed TimestampOracle.

Removal of confirm_leadership() for linearized reads

The distributed TimestampOracle is self-contained and relies on CRDB for linearizability. We therefore don't need the confirm_leadership() operations anymore. These operations were a) "costly", and b) were blocking the coordinator main loop. Removing both of these will improve both latency and throughput for user queries because the coordinator is now free to do other work more often.

Moving TimestampOracle operations off the Coordinator main loop

Because the distributed TimestampOracle is easily shareable, we can move the get_read_ts() operations (and possibly other operations as well) off the coordinator main loop, again chipping away at things that block said main loop. Which will again improve latency and throughput.

Implementation

We will not go into implementation details but instead list all sub-tasks such that someone sufficiently familiar with the involved parts of the code base will be able to understand the required work.

1. Extract an object-safe TimestampOracle trait: During rollout we will keep both the legacy TimestampOracle and the new distributed TimestampOracle and have a LaunchDarkly (LD) flag for switching between them. We therefore need to abstract the concrete implementation away from the code that uses oracles.
2. Extract an mz_postgres_client from the persist postgres Consensus impl: We will re-use the code that persist already has for interacting with Postgres/CRDB using a thread pool.
3. Implement new distributed TimestampOracle backed by CRDB: This uses the previously extracted mz_postgres_client and implements the previously extracted TimestampOracle trait.
4. Add optimization for batching get_read_ts() calls for pending peeks: We can only do this optimization when the new oracle is used, because the in-memory one is not easily shareable.
5. Add optimization for batching write queries: That is, make group commit batching more aggressively
6. Add temporary code where on bootup we pick the highest timestamp of all oracles to initialize the configured oracle: We need this while still in the rollout phase, such that we can switch between oracle implementations when needed. More on this in Rollout, below.
7. Add LD machinery for switching between oracle implementations.
8. Expose new metrics (which we added where required, in the above tasks) in relevant Grafana dashboards.

Intermission: We eventually flip the switch and enable the new oracle in production. See Rollout below.

1. Remove confirm_leadership() call.
2. Remove now-unused in-memory TimestampOracle.
3. Various further refactorings that we can do now that all oracle implementations are (easily) shareable: We will put the oracle behind an Arc<dyn TimestampOracle>. We will move the oracle code out into it's own crate, if we didn't manage to do that before because of dependency shenanigans.

Observability

We will get observability for the thread-pool-enabled Postgres client by relying on mz_postgres_client, which we extracted from the persist Consensus implementation. We do, however, have to add specific metrics for the timestamp oracle itself such that we can observe:

• number of timestamp operations, per operation type: this way, we can see whether batching (both for read and write queries) is working as expected
• latency histogram per operation type
• depending on whether we perform retries inside the TimestampOracle implementation itself, we also want to add metrics for the number of failed/succeeded postgres operations

Rollout

We will make the TimestampOracle implementation configurable using LaunchDarkly and roll the distributed oracle out to first staging and then production. The existing metrics around query latency plus the new metrics for the oracle itself will allow us to detect any bad performance impact. Additionally, we will use the test/scalability framework to test performance (latency and throughput) and compare the distributed TimestampOracle to the in-memory one. See also Appendix A for benchmark results from our current code/oracle implementation.

One detail is that we put code in place such that we can switch back and forth between the oracle implementations, as a safety precaution. This is the reason why we need to leave the confirm_leadership() operation in place, even when using the new distributed TimestampOracle. If we did not do that, we could produce linearization anomalies when switching in either direction.

Only once we have switched production over to the distributed TimestampOracle and once we are certain that we do not have performance regressions will we remove the in-memory TimestampOracle and apply the last refactorings and code cleanups that this enables.

Alternatives

Keep the current TimestampOracle in the singleton Coordinator process

We could keep relying on Stash for storage and on the singleton Coordinator process fencing out other processes. We would also have to keep doing a confirm_leadership() at some point before returning query results.

The distributed serving-layer processes would do timestamp operations via RPC to the Coordinator.

Add a separate (highly available) TimestampOracle service

We would essentially pull the current in-memory/backed-by-stash implementation out into it's own service that clients talk to via (g)RPC. However, we can either accept that it is not highly available or we would have to do work that is similar to the current confirm_leadership() checks to ensure that operations return a linearizable timestamp. Operating a distributed, highly available service is hard, and by using CRDB (our main proposal) we delegate the hard work to that. Plus, we don't want to be operating yet more services as part of a customer deployment.

Open questions

What SQL type to use for the read/write timestamp?

• bigint, so a rust i64: This goes until +9223372036854775807, which is roughly AD 292278994.
• timestamp, which goes until AD 294276. This would give us microsecond resolution so we could squeeze in more than 1000 timestamps per second (which is what we currently get), if we ever wanted to.

When using a timestamp datatype, we would use interval types for our arithmetic, and we could even use now() instead of passing in the wall-clock time, though that latter part is not needed:

UPDATE
    timestamp_oracle SET write_ts = GREATEST(write_ts + '1 millisecond', now()::timestamp)
    WHERE timeline = $timeline
    RETURNING write_ts;

Preliminary tests on a M1 Max Macbook with an in-memory CRDB deployment in Docker show no discernible difference for the different data types, which makes sense because their execution plans are largely the same and query execution time is dominated by reading from and writing to the underlying KV storage.

A separate TimestampOracle for syncing Catalog state?

In the future, multiple serving-layer processes listen to differential changes to Catalog state and we have to have a method for knowing if we are up to date. We can either use a ReadHandle::fetch_recent_upper() that guarantees linearizability, or we could use a TimestampOracle.

If we use a TimestampOracle, we could either use a completely separate oracle for Catalog state or we could re-use the TimestampOracle that we use for the real-time timeline but add another time dimension to it. For example, read_ts would become (table_read_ts, catalog_read_ts).

The benefit of the multi-dimensional timestamps approach is that we need fewer oracle operations and that the timestamps that are mostly used together are stored in one CRDB row. However, it does not provide good separation/doesn't seem a good abstraction. Additionally, we would have to make that call now or add the second dimension later, with a migration. The risk with adding this now is that we might find out later that we added the wrong thing.

Storing Catalog timestamps in a separate oracle seems like the right abstraction but we have to make more oracle operations. The good thing is that timestamp operations can be pipelined/we can make requests to both oracles concurrently. It does mean, however, that a single read now needs two oracle operations: one for getting the Catalog read_ts and one for getting the real-time read_ts.

I'm proposing that we store the Catalog timestamp in a separate TimestampOracle, if we decide to use oracles at all.

Appendix A - Benchmark Results

Here we have a comparison between the in-memory TimestampOracle and the new distributed TimestampOracle. For both of these, the test/scalability benchmarks were executed against my staging environment. For the distributed TimestampOracle, I have a PoC-level branch that implements the oracle and all the required/enabled optimizations mentioned above, which I manually deployed to my environment.

For both peeks and inserts, performance (throughput and latency) is better when using the distributed TimestampOracle because we block the coordinator loop less and because the oracle operations are cheaper than the confirm_leadership() operation, which we are not doing anymore with that oracle.

For updates, performance is worse with the distributed oracle, because apply_write() is now a CRDB operation where previously it was an in-memory operation. Updates are a particularly bad case because all updates are serialized by the (process) global write lock, so we pay the full CRDB overhead per update query and cannot amortize the costs.

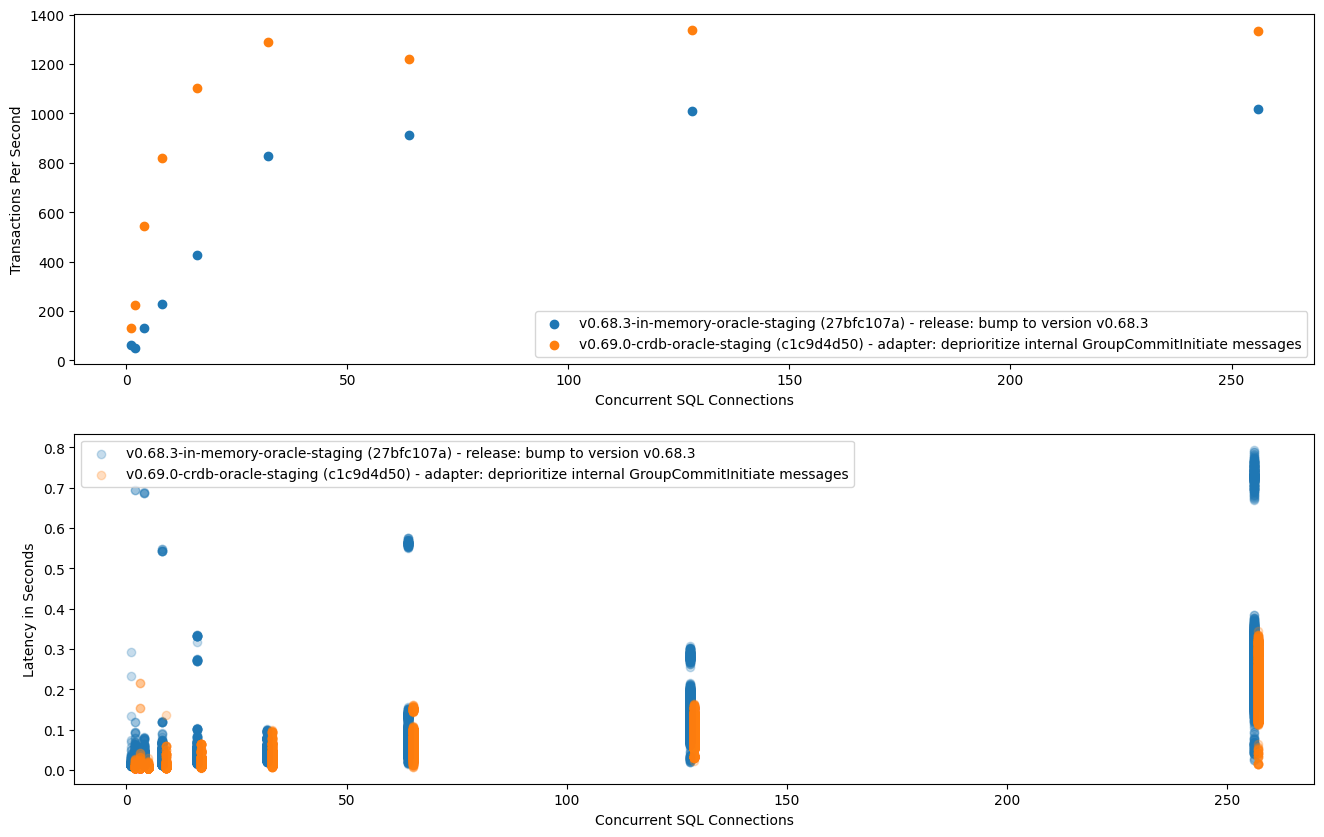

Peek/Select

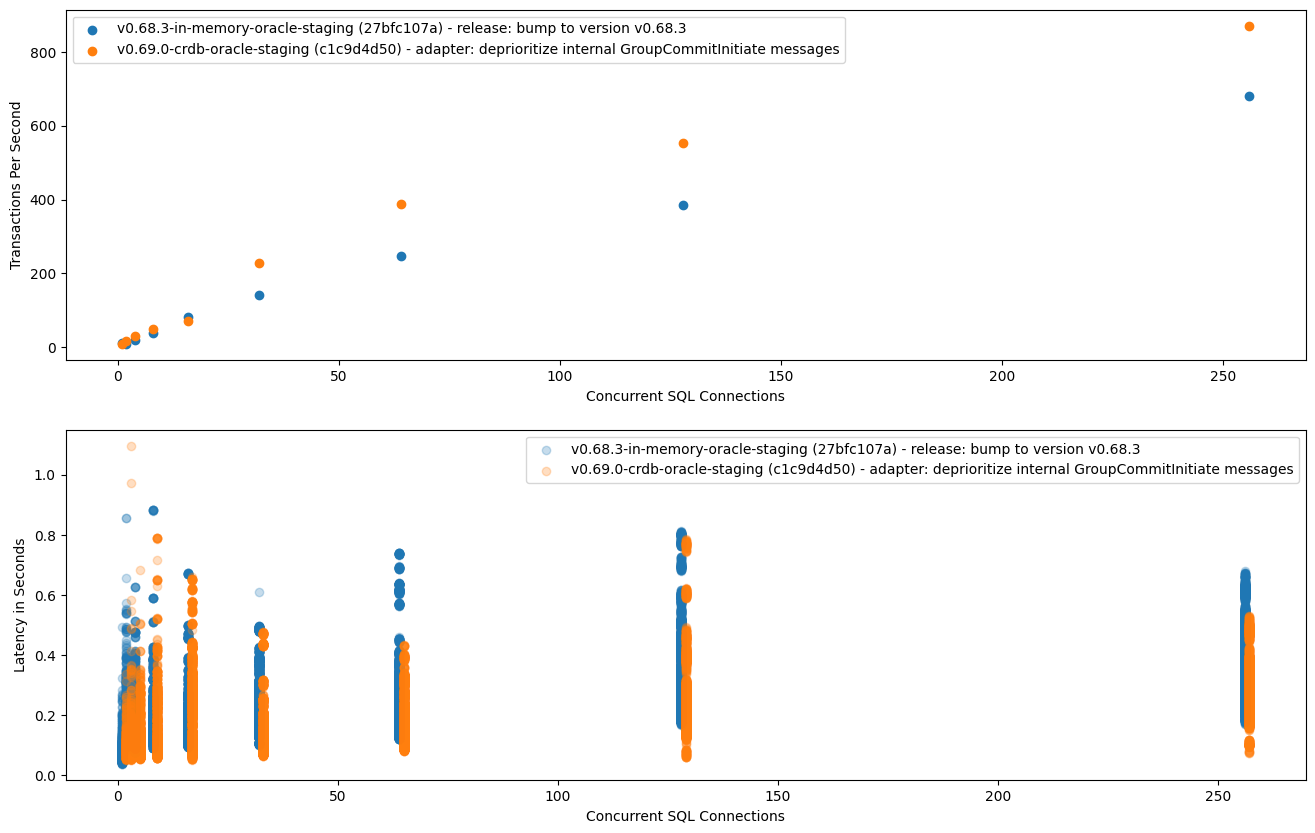

Insert

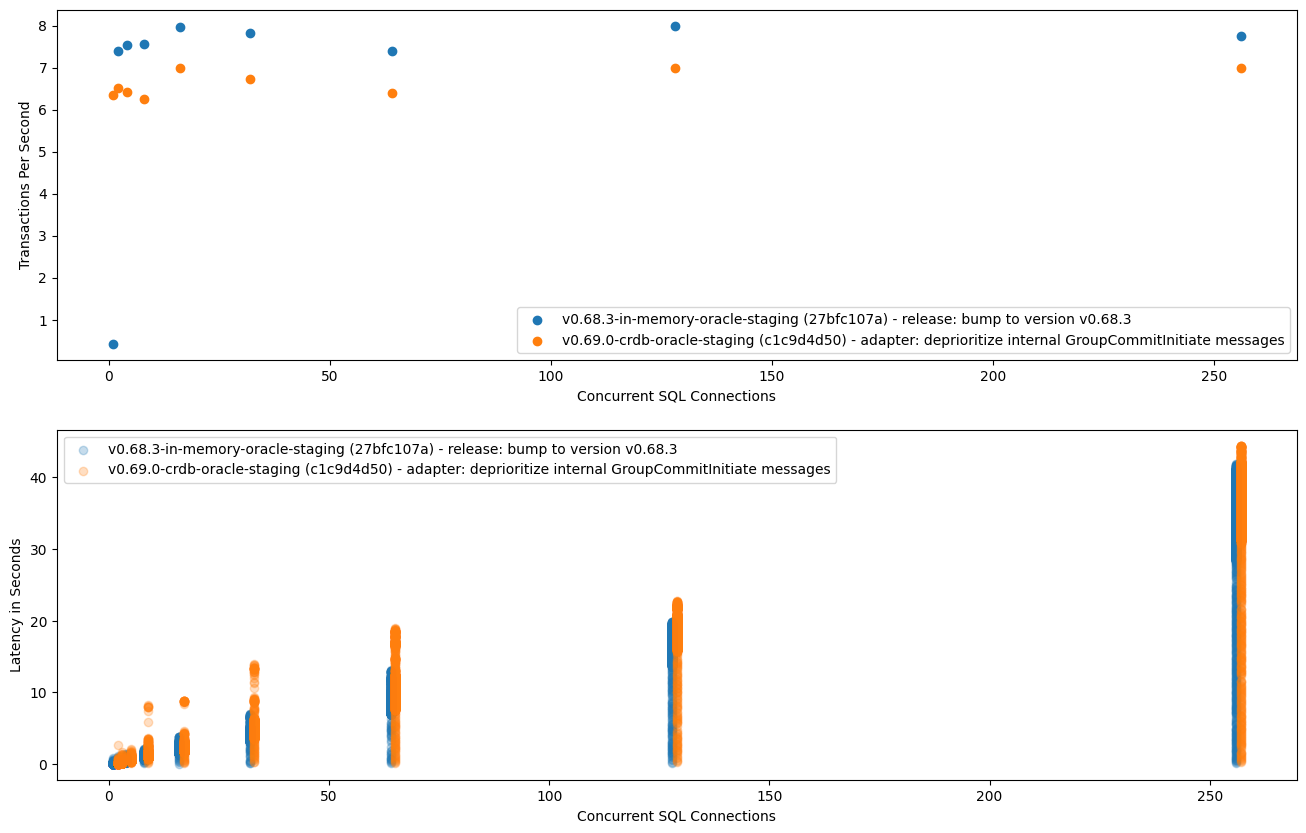

Update
