Materialize/doc/developer/design/20231201_catalog_migration_to_persist.md

Catalog Backend Migration

• Associated: https://github.com/MaterializeInc/database-issues/issues/6310
• Associated: https://github.com/MaterializeInc/database-issues/issues/6762

The Problem

Currently, we persist all users catalog data in the stash. We would like to move all of that data to Persist. This will have the following benefits:

• A step towards architecting a shareable catalog that will contribute to use case isolation.
• Reduced operational overhead related to maintaining the stash. Note, the overhead is not completely removed because the storage controller still uses the stash.

Success Criteria

All user catalog data is stored in Persist.

Out of Scope

• Fully shareable differential catalog.
• Use case isolation.
• Zero downtime upgrades.

Solution Proposal

Config Collection

The config collection is a subset of catalog data that can never be migrated. As a consequence, this data can be read before the catalog is fully opened and can be used to bootstrap an environment. The config collection has keys of type String and values of type u64. Booleans can be modeled using this collection by storing a 0 for false and 1 for true. This proposal will add a key called tombstone, with a boolean value that indicates if a specific catalog backend is retired. A value of false means that the backend is not retired (i.e. is still in use) and a value of true means the backend is retired (i.e. is not still in use).

Epoch Fencing

The catalog durably stores a fencing token called the epoch. All catalog writers and readers also store an in-memory epoch. When a new writer or reader connects to the catalog they store the previous epoch plus one in memory and persist this new value durably. Every time a reader or write performs a read or write, they compare their in-memory token with the persisted token, and if there's a difference, the operation fails. As a result, whenever a reader/write increments the epoch durably, they are effectively fencing out all previous readers/writers.

Catalog Open

Opening a catalog involves the following two steps:

1. Increment the epoch.
2. Either initialize the persisted catalog state if it's uninitialized, or migrate the data format if there are any migrations, otherwise do nothing.

Migrate From Stash to Persist

Below are the steps to migrate from the stash to persist.

1. Open the stash catalog.
2. Open the persist catalog.
3. If the stash tombstone is true, then we're done.
4. Read stash catalog snapshot.
5. Replace the contents of the persist catalog with the stash catalog snapshot.
6. Set the stash tombstone to true.

Rollback From Persist to Stash

Below are the steps to rollback from persist to the stash.

1. Open the stash catalog.
2. Open the persist catalog.
3. If the stash tombstone is false or doesn't exist, then we're done.
4. Read persist catalog snapshot.
5. Replace the contents of the stash catalog with the persist catalog snapshot.
6. Set the stash tombstone to false.

NOTE: Steps (5) and (6) can be done as a single write as a performance optimization.

States

Below is a table describing all possible states of the stash tombstone and what they indicate about where the source of truth catalog data is located.

Stash Tombstone	Source of Truth	Explanation
None	Stash	Migration has never fully completed.
Some(true)	Persist	Migration has completed successfully or rollback crashed before completing.
Some(false)	Stash	Rollback has completed successfully or migration crashed before completing.

State Transitions

Below is a state transition diagram that shows all possible states of the stash tombstone and how the states transition. Each node has the value of the stash tombstone. Each edge indicates what steps from the algorithm above triggers that specific state transition. Next to each node is either Stash if the stash is the source of truth, or Persist if persist is the source of truth.

Alternatives

Below is a similar algorithm that uses two tombstone values, one in persist and one in the stash. Some may find that the individual states are slightly easier to reason about, but the state transitions are harder to reason about.

Migrate From Stash to Persist

Below are the steps to migrate from the stash to persist.

1. Open the stash catalog.
2. Open the persist catalog.
3. Set the stash tombstone to true.
4. If the persist tombstone is false, then we're done.
5. Read stash catalog snapshot.
6. Write catalog snapshot to persist.
7. Set the persist tombstone to false.

NOTE: Steps (6) and (7) can be done as a single compare and append operation as a performance optimization.

Rollback From Persist to Stash

Below are the steps to rollback from persist to the stash.

1. Open the stash catalog.
2. Open the persist catalog.
3. Set the stash tombstone to false.
4. If the persist tombstone is true or doesn't exist, then we're done.
5. Read persist catalog snapshot.
6. Write catalog snapshot to stash.
7. Set the persist tombstone to true.

States

Below is a table describing all possible states of (stash_tombstone, persist_tombstone) and what they indicate about where the source of truth catalog data is located.

Stash Tombstone	Persist Tombstone	Source of Truth	Explanation
None	_	Stash	Migration has never been initiated.
_	None	Stash	Migration has never fully completed.
Some(true)	Some(false)	Persist	Migration has completed successfully.
Some(false)	Some(true)	Stash	Rollback has completed successfully.
Some(true)	Some(true)	Stash	Migration crashed before completing.
Some(false)	Some(false)	Persist	Rollback crashed before completing.

State Transitions

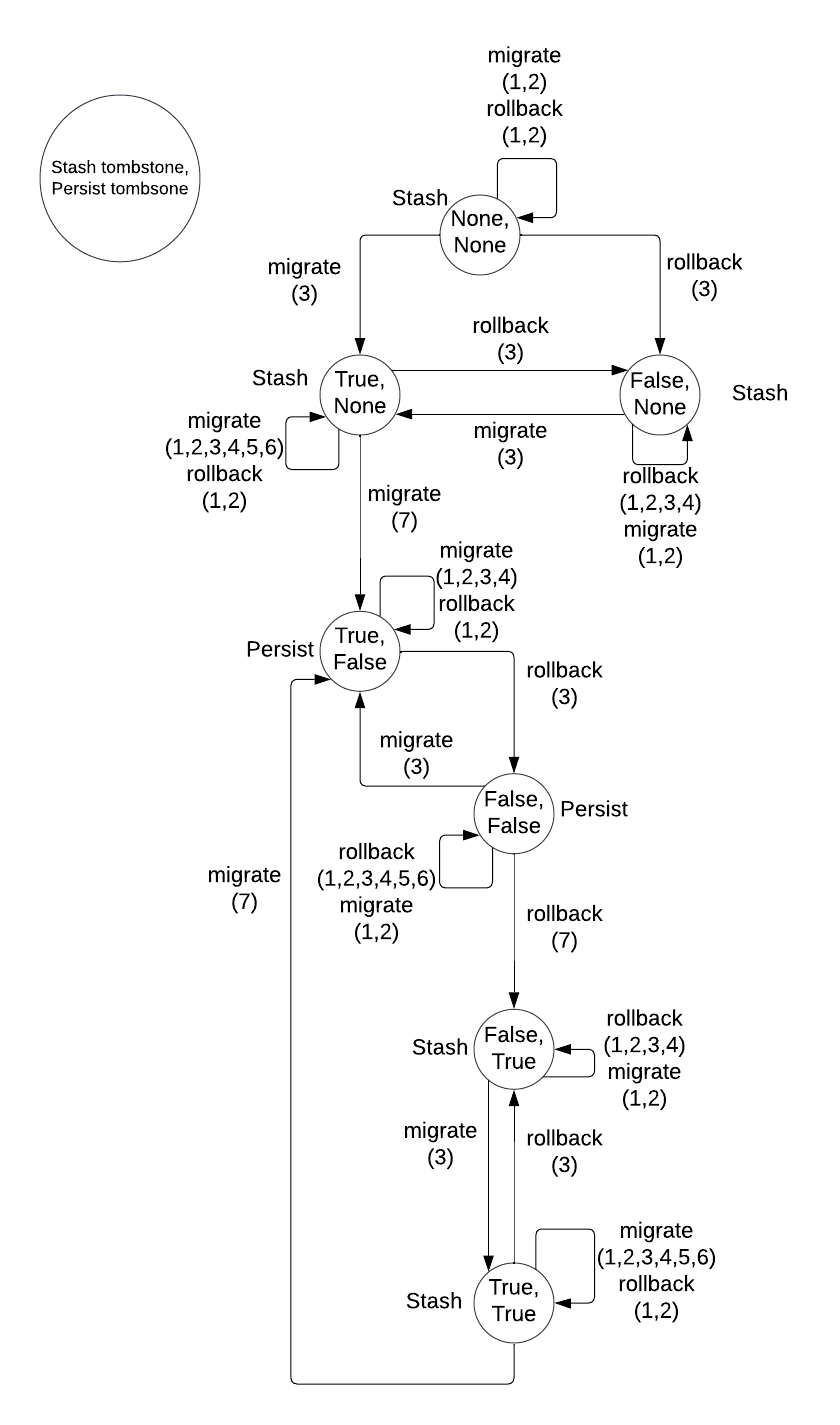

Below is a state transition diagram that shows all possible states of (stash_tombstone, persist_tombstone) and how the states transition. Each node has the format of (stash_tombstone, persist_tombstone). Each edge indicates what steps from the algorithm above triggers that specific state transition. Next to each node is either Stash if the stash is the source of truth, or Persist if persist is the source of truth.

Open questions

• There are certain classes of optimizations we can make to the startup process depending on the initial state. For example, if we are migrating from the stash to persist and the stash has never been initialized, then don't initialize the stash. Another example is that if we're rolling back from persist to the stash and there's data format migrations, then we should skip migrations in persist. Should we make these optimizations? My opinion is no because they will complicate the code for something that will hopefully only be run once during a single release and will probably not save us that much latency.
